ANSI Process Pump Repair
ANSI Process Pumps are excellent for efficiently pumping water and oil. Even well selected pumps wear over time, and when the time comes, Powerflo is your top shelf choice for gear pump repairs in California.
-
Aplex MA Series Pumps
Built for heavy, continuous duty 24-hours per day, 365 days per year application. Designed to handle the toughest applications. Available in configurations to comply with the Hydraulic Institute standards as well as API674 Standards.
MA Series Pump Features:
- Flows up to 650 GPM
- Pressure ratings up to 5,000 PSI
- Horsepower ratings to 240
- Temperatures to 400 F
- Metallurgies available are Ductile Iron, Aluminum Bronze,
Carbon Steels and a variety of Stainless Steel
Models:MA-15M, MA-15H, MA-25L, MA-25M, MA-25H, MA-40L, MA-40H, MA-60M, MA-60H, MA-75L, MA-75M, MA-75H, MA-95L, MA-95M, MA-120L, MA-120M, MA-120H, MA-140M, MA-155L, MA-155M, MA-240K, MA-240L, MA-240M, MA-240H, MA-300L, MA-300M
-
Aplex RO Series Pumps
Built for heavy, continuous duty 24-hours per day, 365 days per year application. Designed to handle the toughest applications. Available in configurations to comply with the Hydraulic Institute standards as well as API674 Standards.
RO Series Pump Features:
- Flows up to 650 GPM
- Pressure ratings up to 5,000 PSI
- Horsepower ratings to 240
- Temperatures to 400 F
- Metallurgies available are Ductile Iron, Aluminum Bronze,
Carbon Steels and a variety of Stainless Steel
Models: RO-23, RO-38, RO-64, RO-72, RO-86, RO-117, RO-174, RO-185, RO-261, RO-227, RO-358, RO-358L
-
Aplex SC Series Pumps
Built for “intermittent duty” at full ratings for shift type of work, i.e. eight hours per day. This pump line offers the same design features as the MA Series in a smaller more compact and cost-effective design for this type of work and follows Hydraulic Institute Standards.
SC Series Pump Features:
- Flows up to 585 GPM
- Pressure ratings up to 6,500 PSI
- Horsepower ratings to 400
- Temperatures to 400 F
- Metallurgyies available are ductile iron, aluminum bronze, carbon steel, or stainless steel
Models: SC-30, SC-30H, SC-45, SC-45L,
SC-65, SC-65L, SC65H, SC-80, SC-80H, SC-95, SC-115, SC-115L, SC-115H, SC-170, SC-170L, SC-170H, SC-170DD, SC-230, SC-230H, SC-300, SC-300L, SC-300H -
Aurora 3550, ASME ANSI B73.1
Three Frame Sizes Available:
- Model 3550-S
- Model 3550 – M/L
- Model 3550 – XL
KEY FEATURES
- Heavy-Duty Casing Increases Reliability, Reduces Maintenance and Allows for Maximum Life
- Heavy Duty Bearings Designed for Maximum Hydraulic Loads
- Features Extending Bearing Life:
- Over-sized Shaft to Reduce Vibrations
- Labyrinth Oil Seals to Prevent External Contaminants
- Large Capacity Oil Sump for Cooler Oil Temperatures and Better Heat Transfer
- Magnetic Drain Plug to Remove Particles
- Designed for the toughest applications including:
- Chemical
- Petro-Chemical
- Mining
- Pulp & Paper
- Consumer Products
- General Industry
CAPACITIES: 4200 GPM (954 m3/hr)
HEADS: 725 Feet (221 Meters)
TEMPERATURES: 650°F (343°C)
PRESSURES: 375 PSIG (4998 kPa)
-
Aurora Close-Coupled Pump Package
Powerflo Products Inc. designs quality centrifugal pump and motor packages custom built and engineered to meet your specific pumping conditions and requirements.
Pictured are an Aurora close-coupled pump units for 800GPM @ 20PSI and 800GPM @ 50PSI. Pump models are 341A BF 6×6-9 with a 15HP/3600RPM motor and 341A BF 4x4x7B with a 30HP/3600RPM Motor
-
Aurora Pump – 421 Split Case Pump Package
Powerflo Products Inc. designs quality centrifugal pump and motor packages custom built and engineered to meet your specific pumping conditions and requirements.

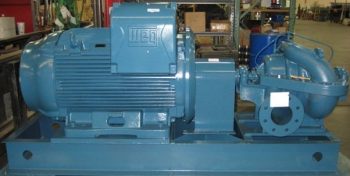

Pictured is an Aurora split case pump unit for 650GPM @ 500PSI. Pump model is 421BF 6×6-12 with a 500HP motor.
-
Aurora Pumps – 323 Close Coupled Vertical Centrifugal End Suction Pumps
323 Aurora Pumps are available in various sizes and materials of construction as shown below:
323-BF – Cast Iron Bronze Fitted
323-AI – All Iron
323-AB – All BronzeKey Features
- Low Noise Level with Aurora Close Coupled Motors
- Vertical Center-Line Discharge Makes Pump Self-Venting, Avoids Vapor Locks and Minimizes Pipe Strain
- Case Wearing Ring Prevents Wear on Casing and Easily/Inexpensively Replaced
- Enclosed Impellers Provide Highest Efficiency and Lowest Wear for Long Service Life
- Variety of End Suction Configurations Available Including Close-Coupled, Flexible Coupled, Horizontal or Vertical-Mounted Pumps
- Applications Include:
- Hot Water Circulating Pumps
- Cooling Tower Makeup
- Boiler Feed Service
- Transfer Service
- TV & Radar Tube Cooling
-
Aurora Pumps – 324A Flex Coupled Centrifugal End Suction Pumps
324A Aurora Pumps are available in various sizes and materials of construction as shown below:
323-BF – Cast Iron Bronze Fitted
323-AI – All Iron
323-AB – All BronzeKey Features
- Low Noise Level with Aurora Close Coupled Motors
- Vertical Center-Line Discharge Makes Pump Self-Venting, Avoids Vapor Locks and Minimizes Pipe Strain
- Case Wearing Ring Prevents Wear on Casing and Easily/Inexpensively Replaced
- Enclosed Impellers Provide Highest Efficiency and Lowest Wear for Long Service Life
- Variety of End Suction Configurations Available Including Close-Coupled, Flexible Coupled, Horizontal or Vertical-Mounted Pumps
- Applications Include:
- Hot Water Circulating Pumps
- Cooling Tower Makeup
- Boiler Feed Service
- Transfer Service
- TV & Radar Tube Cooling
-
Aurora Pumps – 342A Vertical End Suction Centrifugal Pumps
342A Aurora Pumps are available in various sizes and materials of construction as shown below:
- 342A-BF – Cast Iron Bronze Fitted
342A-AI – All Iron
342A-AB – All BronzeKey Features
- End Suction Pumps are Often Used in Offices and Commercial Buildings for Internal Environment Control
- End Suction Pumps for HVAC Come in a Variety of Configurations Including Close-Coupled, Flexible Coupled, Horizontal or Vertical Mounted Pumps
- Computer-Machined Major Components with 360A Registered Fit
- Precision Cast, Dynamically Balanced, Enclosed Impeller Lasts Longer than the Competition
- Case Wearing Ring Prevents Wear on Casing and is Easily and Inexpensively Replaced
- Impeller Wear Rings are Also Available and Front Case Wearing Rings are Standard on All Models and Size Pumps
- Rear Support Foot provides Support and Simplifies Coupling Alignment
- Hydrostatic Tested Pump Casing Ensures Casting and Seal Integrity
- Applications Include:
- Chilled Water
- Heating and Air Conditioning
- Cooling Tower Makeup
- Water Booster System
-
Aurora Pumps – 321 Close Coupled Centrifugal Pumps
Aurora 321 Pumps are available in various sizes and materials of construction as shown below:
321-BF – Cast Iron Bronze Fitted
321-AI – All Iron
321-AB – All BronzeKey Features
- Low Noise Level with Aurora Close Coupled Motors
- Vertical Center-Line Discharge Makes Pump Self-Venting, Avoids Vapor Locks and Minimizes Pipe Strain
- Case Wearing Ring Prevents Wear on Casing and Easily/Inexpensively Replaced
- Enclosed Impellers Provide Highest Efficiency and Lowest Wear for Long Service Life
- Variety of End Suction Configurations Available Including Close-Coupled, Flexible Coupled, Horizontal or Vertical-Mounted Pumps
- Applications Include:
- Hot Water Circulating Pumps
- Cooling Tower Makeup
- Boiler Feed Service
- Transfer Service
- TV & Radar Tube Cooling
-
Aurora Pumps – 341A Close Coupled Centrifugal Pumps
Key Features
- End Suction Pumps are often used in general industrial water or clear fluid applications and also in offices and commercial buildings for internal Environment Control
- Computer-Machined Major Components with 360A Registered Fit
- Precision Cast, Dynamically Balanced, Enclosed Impeller Lasts Longer than the Competition
- Case Wearing Ring Prevents Wear on Casing and is Easily and Inexpensively Replaced
- Impeller Wear Rings are Also Available and Front Case Wearing Rings are Standard on All Models and Size Pumps
- Rear Support Foot provides Support and Simplifies Coupling Alignment
- Hydrostatic Tested Pump Casing Ensures Casting and Seal Integrity
- Applications Include:
- Chilled Water
- Heating and Air Conditioning
- Cooling Tower Makeup
- Water Booster System
